Rock & Soil Auger Manufacturer

The AAETT® Rock & Soil Auger is a versatile drilling tool engineered for efficient performance in both rock and soil conditions. Featuring a heavy-duty cutting head equipped with high-strength teeth or chisels, it delivers excellent penetration through hard rock formations while maintaining smooth operation in softer ground.

Designed for construction, mining, and geotechnical applications, the AAETT® Rock & Soil Auger offers outstanding drilling efficiency, superior durability, and extended service life, making it a reliable solution for demanding drilling environments.

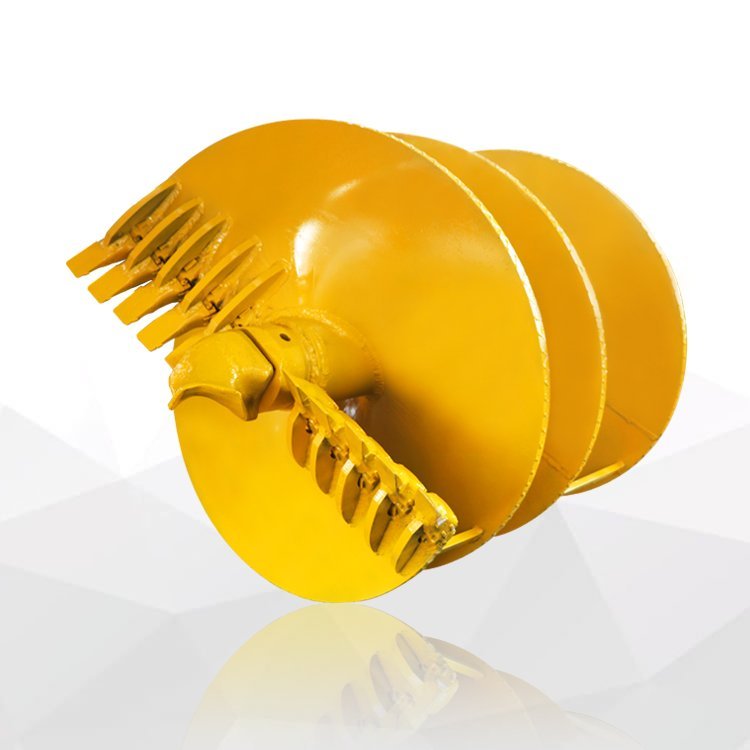

Staright Auger

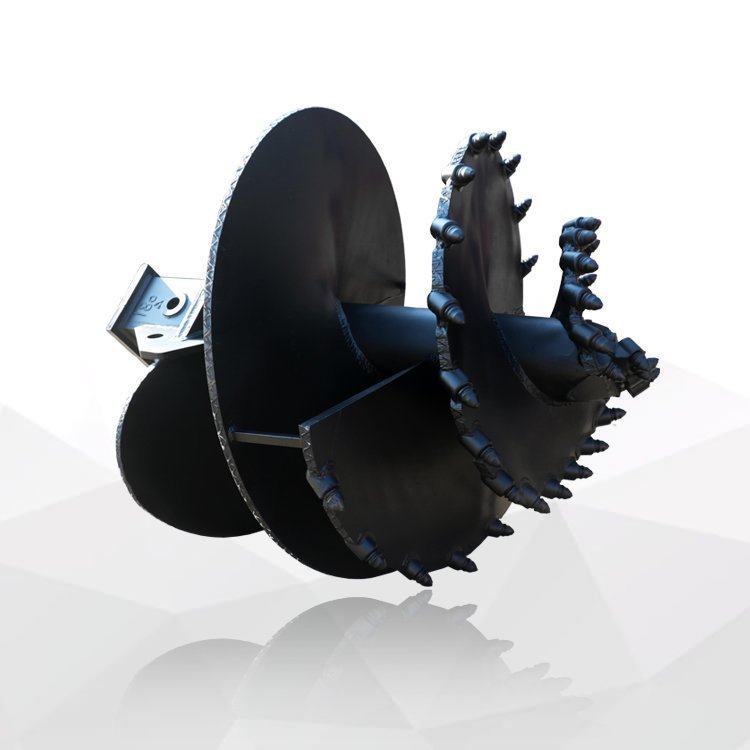

Conical Auger

Conical Rock Auger

Sturdy and wearable forging steel pilot for accurate positioning.
Hard facing strips on flights for wear protection.
Kelly box 130mm, 150mm, 200mm (optional).

Flat Rock Auger

Sturdy and wearable forging steel pilot for accurate positioning.
Hard facing strips on flights for wear protection.
Kelly box 130mm, 150mm, 200mm (optional).

Flat Soil Auger
Fish-tail Pilot for accurate positioning.
Hard-facing strips on flights for wear protection.
Kelly box 130mm, 150mm, 200mm (optional).

Parameters

Conical Rock Auger

Drilling Dia. mm	Flight Dia. mm	Pitch mm	Flight Length mm	Teeth Qty Pcs	Single cut Weight kg	Double cut weight kg
600	550	600	1200	22	438	537
700	650	600	1200	22	467	596
800	750	600	1200	24	512	708
900	850	600	1200	26	586	775
1000	950	600	1200	28	633	871
1100	1050	600	1200	30	674	958
1200	1150	600	1200	32	718	1047
1300	1250	600	1200	32	767	1145
1400	1350	600	1200	34	821	1253
1500	1450	600	1200	36	875	1367
1800	1750	600	1200	40	1081	1766
Other sizes can be manufactured as per customer demand.

Flat Rock Auger

Drilling Dia. mm	Flight Dia. mm	Pitch mm	Flight Length mm	Teeth Qty Pcs	Single cut Weight kg	Double cut Weight kg
600	550	600	1200	6	481	559
700	650	600	1200	8	519	630
800	750	600	1200	10	560	705
900	850	600	1200	12	614	802
1000	950	600	1200	12	675	910
1100	1050	600	1200	14	741	1029
1200	1150	600	1200	16	809	1153
1300	1250	600	1200	16	887	1293
1400	1350	600	1200	17	973	1447
1500	1450	600	1200	18	1059	1606
1800	1750	600	1200	22	1364	2155
Other sizes can be manufactured as per customer demand.

Flat Soil Auger

Drilling Dia. mm	Flight Dia. mm	Pitch mm	Flight Length mm	Teeth Qty Pcs	Single cut Weight kg	Double cut Weight kg
600	550	600	1200	4	478	561
700	650	600	1200	4	516	630
800	750	600	1200	4	554	700
900	850	600	1200	5	610	796
1000	950	600	1200	6	668	904
1100	1050	600	1200	6	732	1016
1200	1150	600	1200	6	800	1139
1300	1250	600	1200	7	879	1279
1400	1350	600	1200	8	959	1429
1500	1450	600	1200	9	1050	1590
1800	1750	600	1200	11	1351	2132
Other sizes can be manufactured as per customer demand.

Application

Conical Rock Auger

1. Medium to strong rock(15-60Mpa).

2. Double Cut Auger is recommended in unclosed bores or for bigger diameters.

Flat Rock Auger

1. Very dense sand and gravel, weak rock(<5Mpa).

2. Double Cut Auger is recommended in uncased bores or for bigger diameters and secant pile walls.

Flat Soil Auger

1. Soft to stiff silt and clay, loose to medium dense sand and gravel.

2. Double Cut Soil auger is recommended for uncased bores or for bigger diameters.

Advantages

1. High quality raw materials and high steel strength.
2. Simple operation.
3. High wear resistance.
4. High drilling efficiency.
5. High hardness.
6. Good roundness of the cylinder.
7. Long using life.

Rock & Soil Auger Manufacturer

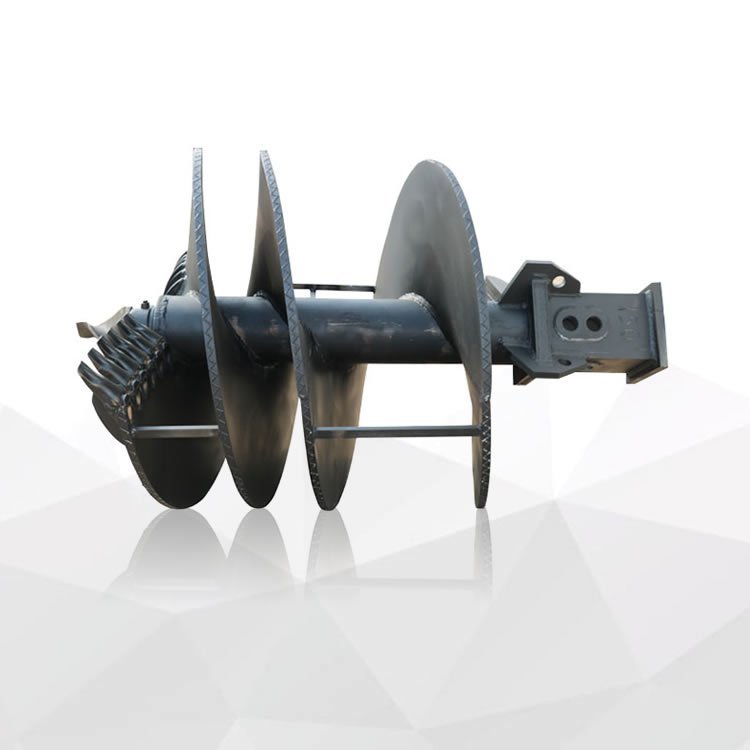

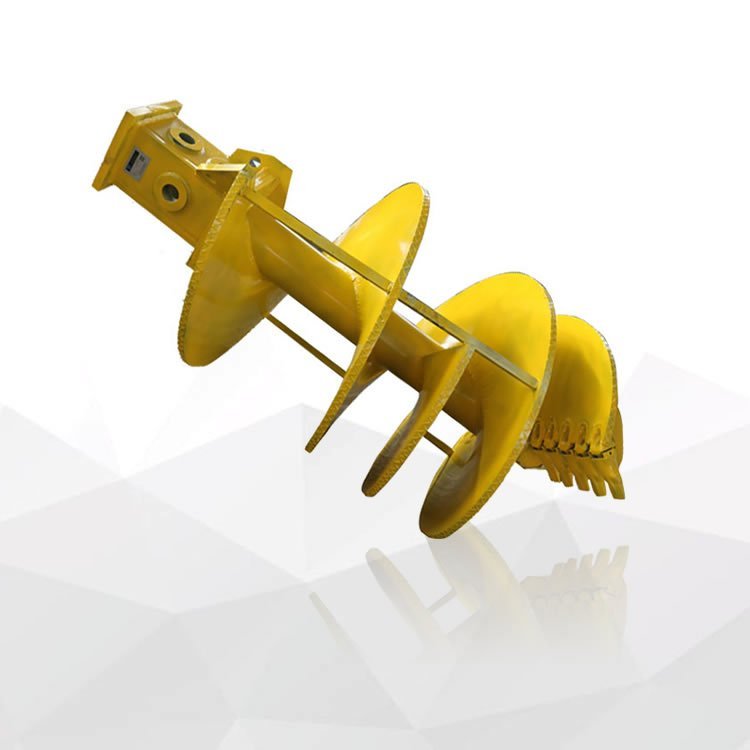

Staright Auger

Staright Auger

Staright Auger

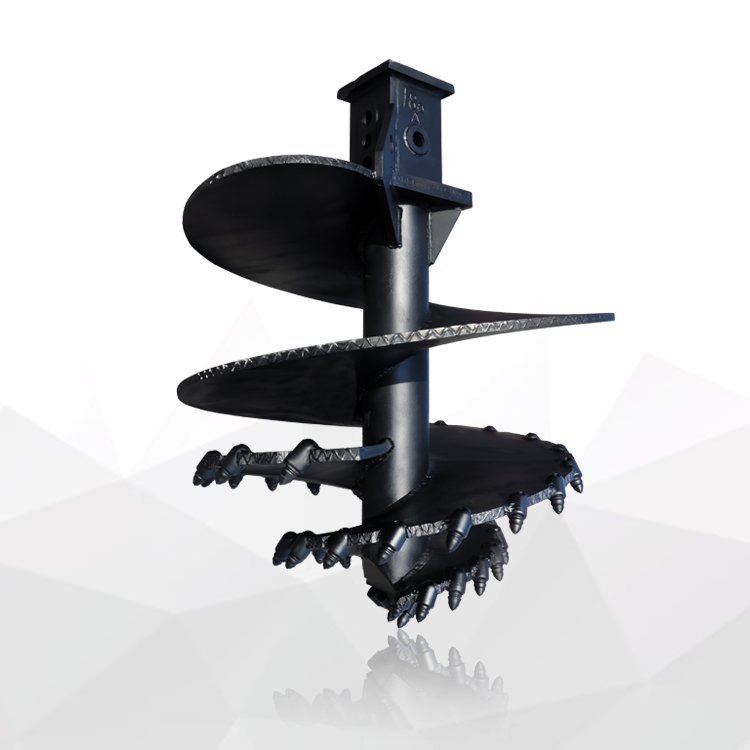

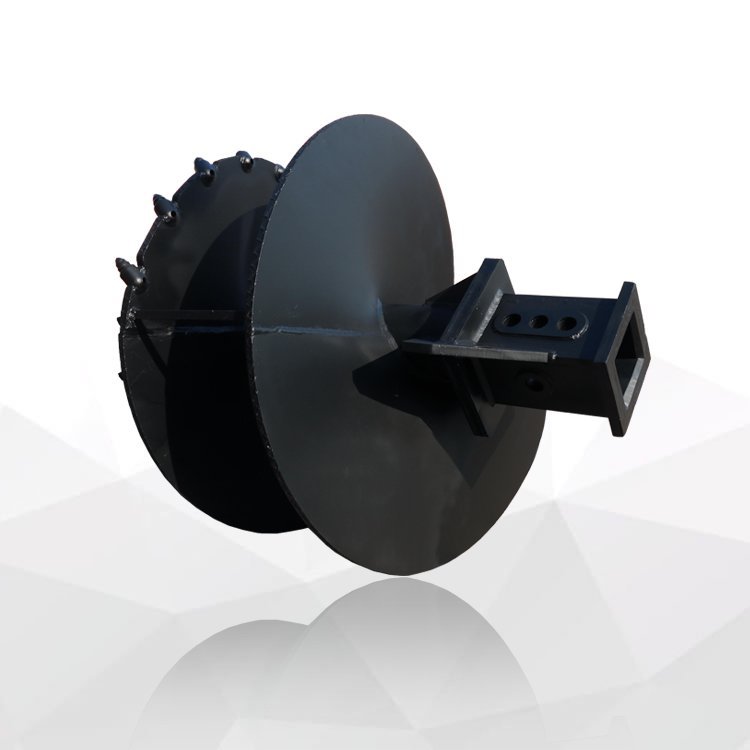

Conical Auger

Conical Auger

Conical Auger

Parameters

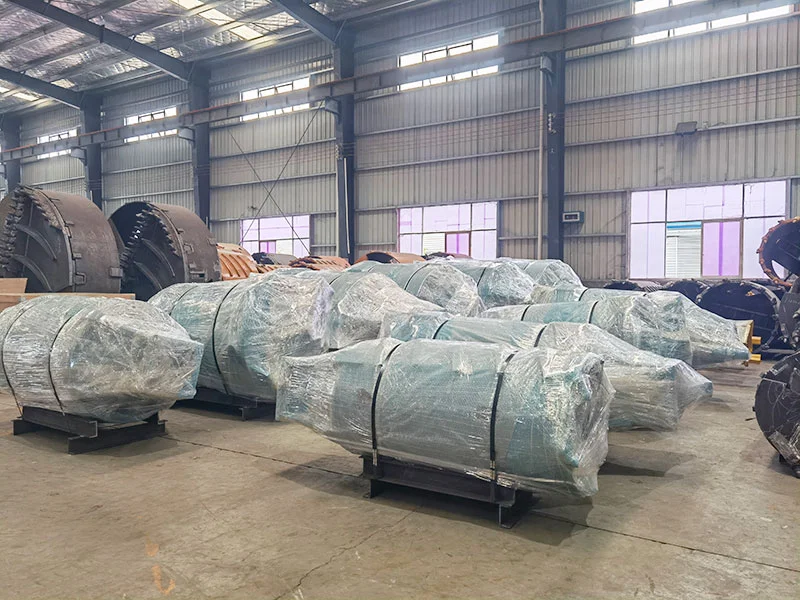

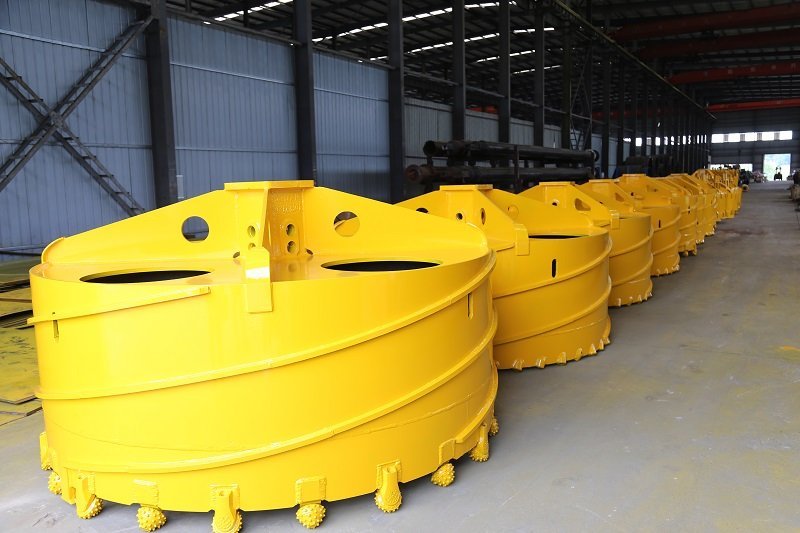

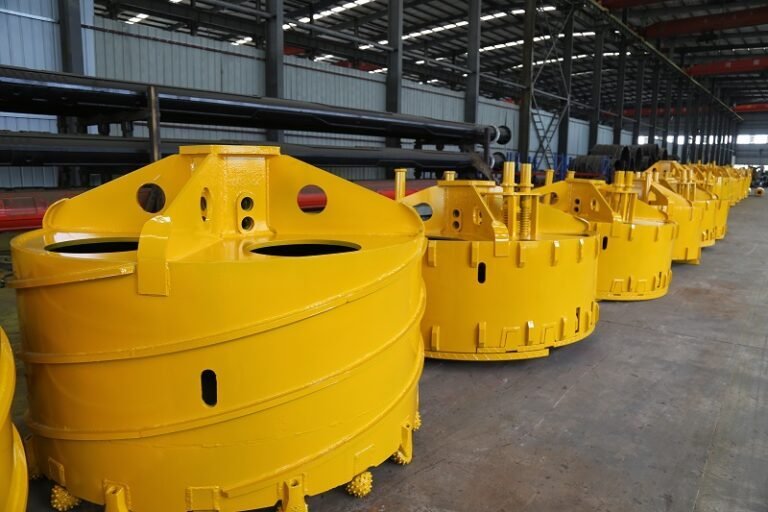

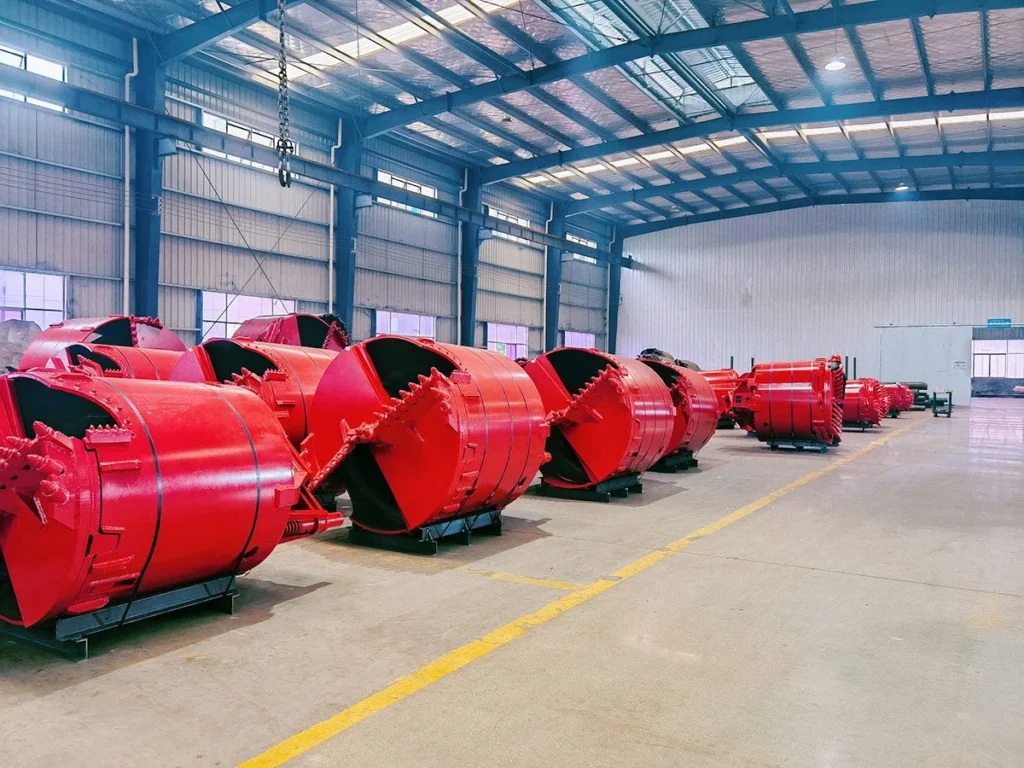

Production Facility
